APEXX T4 workstation pc

APEXX T4 workstation pc

APEXX T4 workstation pc

The APEXX T4 PRO-X delivers uncompromising performance for AI model training, machine learning development, demanding motion media, rendering, complex simulation, generative design and more. Choose between dual NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition GPUs, the most powerful desktop GPUs ever created, or four NVIDIA RTX PRO™ 6000 Max-Q Blackwell GPUs for maximum parallel processing capability and accelerated AI workloads. Advanced cooling and power systems* enable seamless integration of these high-performance GPUs into one workstation. The system includes an expanded 12-slot PCIe card bay, powerful AMD Ryzen™ Threadripper™ PRO 9000 WX-Series processor (up to 96 cores), 128 PCIe Gen5 lanes, and flexible tower or rack deployment options. *requires 200-240 VAC input power.

COMPARE THREADRIPPER™ PRODUCTS

As Recommended:    $9,570.00



  • 24-core AMD Ryzen™ Threadripper™ PRO 9000 Series 4.2GHz
  • 128GB DDR5-6400MHz ECC REG
  • NVIDIA® 2000 ADA 16GB
  • 1TB M.2 NVMe 5.0 SSD
  • Microsoft® Windows™ 11

* Support for the maximum number of GPUs depends on GPU model.

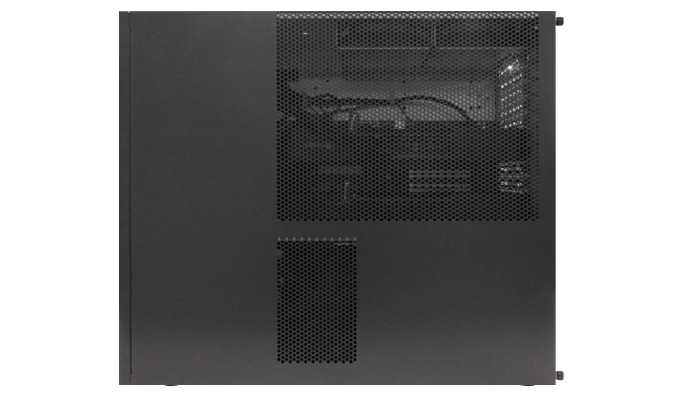

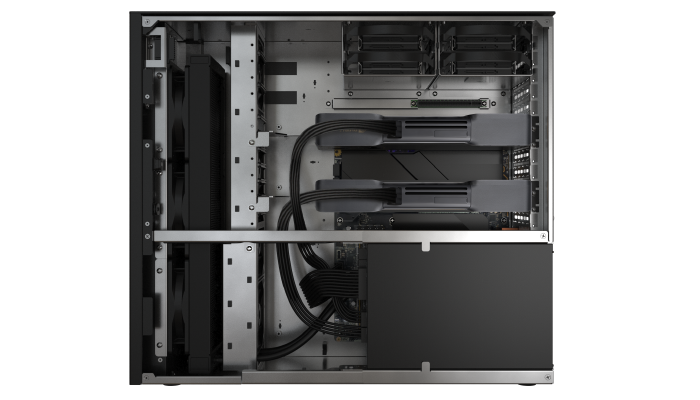

  Chassis images are generic. Check the specs
  tab for information specific to this model.

View Spec Sheet

Specification

View Spec Sheet
Chipset:AMD WRX90
Socket:Single (sTRX5)
CPU Cooling:Liquid-Cooled (closed loop)
Processor:AMD Threadripper Pro
Core Frequency (GHz):2.5 Base clock / 5.1 Boost clock
Cores/Threads:96/192
Multi-Threading:Yes
Max Configurable Memory:2TB DDR5-6400MHz
DIMM Slots:8
PCIe Slots:

x16, x16, x16, x16, x16, x16(8), x16

Supported GPU Configurations:

① x16 ② x16/x16
③ x16/x16/x16 ④ x16/x16/x16/x16

2.5" Drive(s):4 (Up to 8TB each)
3.5" Drive(s):4 (Up to 18TB each)
Shipping Dimensions:

24" (60.96cm) W
15" (38.10cm) H
27" (68.58cm) D

Shipping Weight:40 lbs.
Anti-Theft Feature:Kensington® Security Slot
M.2 Drive(s):4 (Up to 4TB each)
U.2 Support:No
RAID Support: 0, 1
OCuLink Support:No
Max 2.5"/3.5" Configurations:4 x 3.5" | or | 8 x 2.5"
Onboard Wi-Fi:N/A
Onboard Bluetooth:N/A
Power Supply:2050-Watt (80 Plus Platinum) (208-240V)
GPU Power Budget (W):1600
Product Dimensions:

6.85" (17.40cm) W
18.0" (45.72cm) H
20.2" (51.31cm) D

Front I/O:

2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 1 Type C
Audio Out/Mic In

Rear I/O:

2 x USB 4.0 (Type-C)
6 x USB 3.2 Gen 1 (Type-A)
1 x USB 2.0
2 x 10GbE LAN (RJ-45)
1 x 1 GbE LAN (RJ-45) IPMI
1 x VGA BMC Port
2 x Audio Jacks

Optical Drive Option:No
Rackmount Option:Yes
Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.
