HELIXX 4U8G | XEON 6700

The HELIXX 4U8G | XEON is the ultimate high-density 4U server for the edge. Powered by Dual Intel® Xeon® 6700 Series processors and supporting up to four graphics cards and 4 TB of memory, this platform is purpose-built for deploying complex NVIDIA Omniverse™ simulations and high-performance LLM inference. Its compact design delivers the necessary GPU, CPU, and memory resources for seamless real-time rendering and AI model deployment.

Specification

Download Spec Sheet

See Full Specs

Chipset:	SoC
Socket:	Dual (4710-E2)
CPU Cooling:	Air-Cooled
Processor:	Dual Intel Xeon 6700P
Core Frequency (GHz):	2.9 Base clock / 4.0 Boost clock
Cores/Threads:	128/256
Multi-Threading:	Yes
Max Configurable Memory:	4TB DDR5-6400MHz
DIMM Slots:	32
PCIe Slots:	8 PCIe 5.0 x16 for NVIDIA® RTX PRO™ Blackwell Server Edition 5 PCIe 5.0 x16 for Network Add in Cards
Supported GPU Configurations:	Up to 8 GPUs PCIe 5.0 x16

2.5" Drive(s):	N/A
3.5" Drive(s):	N/A
Shipping Weight:	60 lbs.
M.2 Drive(s):	2 (Up to 4TB each)
Power Supply:	3200-Watt 3+1 (80 Plus Titanium) (208-240V)
GPU Power Budget (W):	4800
Product Dimensions:	17.2" (43.85cm) W 6.88" (17.50cm) H 31.4" (80.0cm) D

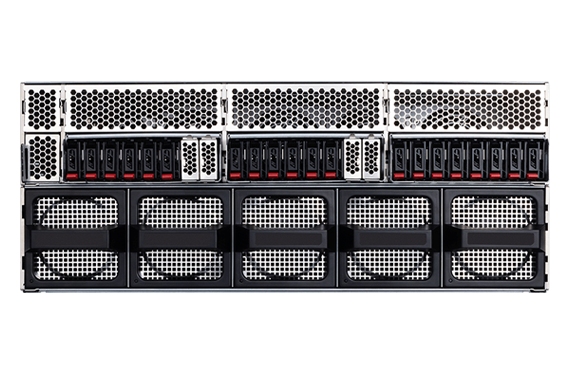

Front I/O:	(20) Hot-Swap E1.S Drive Bays

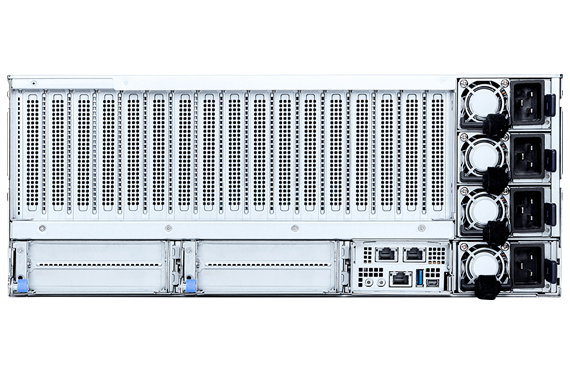

Rear I/O:	(1) 1000Base-T Dedicated Server Management port (1) 10GBase-T Ethernet ports (1) USB 3.0/2.0 Type-A port (1) Mini Display port (1) Power LED button (1) UID LED button
Rackmount Option:	Yes

Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.
