HELIXX 2U4G | XEON 6700

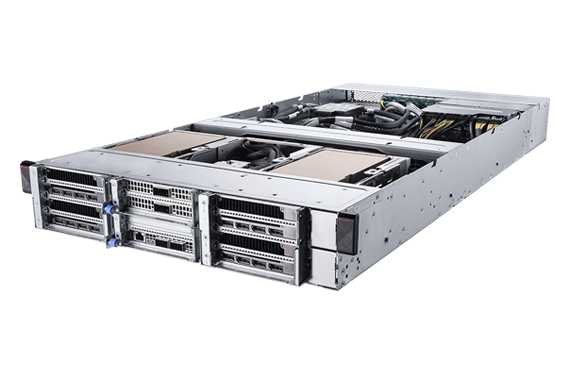

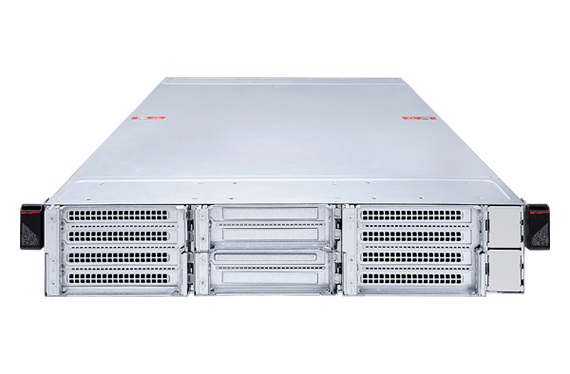

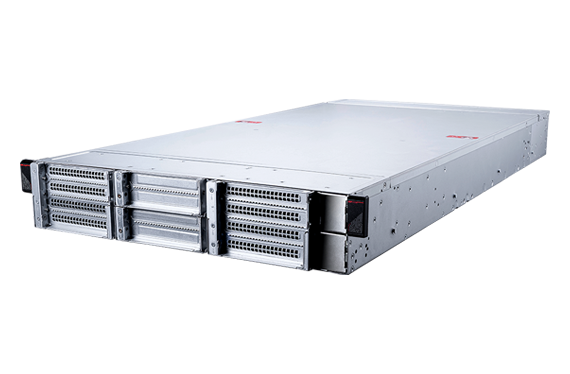

The HELIXX 2U4G | XEON is the ultimate high-density 2U server for the edge. Powered by Intel Xeon 6700 Series processors and supporting up to four graphics cards and 2 TB of memory, this platform is purpose-built for deploying complex NVIDIA Omniverse™ simulations and high-performance Edge Compute inference. Its compact design delivers the necessary GPU, CPU, and memory resources for seamless real-time rendering and AI model deployment.

Specification

Download Spec Sheet

See Full Specs

Chipset:	SoC
Socket:	Single (4710-E2)
CPU Cooling:	Air-Cooled
Processor:	Intel Xeon 6700P
Core Frequency (GHz):	2.9 Base clock / 4.0 Boost clock
Cores/Threads:	64/128
Multi-Threading:	Yes
Max Configurable Memory:	2TB DDR5-6400MHz
DIMM Slots:	16
PCIe Slots:	4 PCIe 5.0 x16 for NVIDIA® RTX PRO™ 6000 Blackwell Server Edition 3 PCIe 5.0 x16 for Network Add in Cards
Supported GPU Configurations:	Up to 4 GPUs PCIe 5.0 x16

2.5" Drive(s):	4 (Up to 8TB each)
3.5" Drive(s):	N/A
Shipping Weight:	60 lbs.
M.2 Drive(s):	2 (Up to 4TB each)
Power Supply:	2400-Watt 2+2 (80 Plus Titanium) (208-240V)
GPU Power Budget (W):	2400

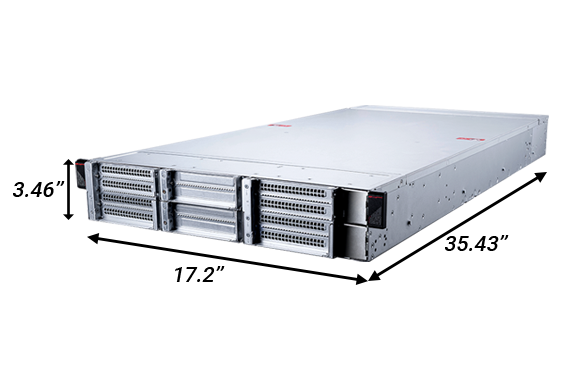

Product Dimensions:	17.2" (43.85cm) W 3.46" (8.80cm) H 35.43" (90.0cm) D

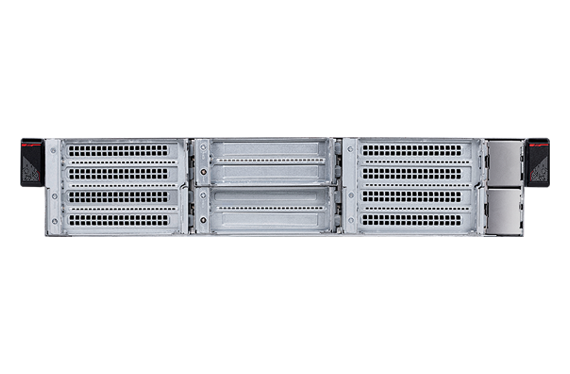

Front I/O:	12 PCIe I/O Windows

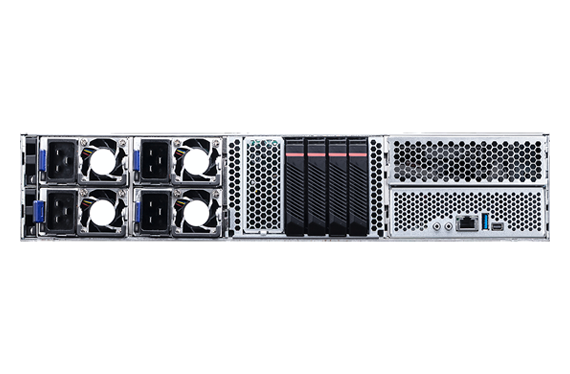

Rear I/O:	(1) 1000Base-T Dedicated Server Management port (1) USB 3.0/2.0 Type-A port (1) Mini Display port (1) Power LED button (1) UID LED button
Rackmount Option:	Yes

Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.
