APEXX W3 workstation pc

APEXX W3 workstation pc

APEXX W3 workstation pc

Optimized for rendering, simulation, desk side deep learning development, and other GPU-centric workflows, liquid-cooled APEXX W3 is equipped with an Intel® Xeon® W processor capable of supporting up to four* NVIDIA® RTX™ GPUs, as well as ample memory and plenty of hard drives.​

As Recommended: $5,918.00 $4,918.00 YOU SAVE $1,000



  • 12-core Intel® Xeon® W 3.5GHz
  • 64GB DDR5-5600MHz ECC REG
  • NVIDIA® 2000 ADA 16GB graphics
  • 1TB M.2 NVMe SSD
  • Microsoft® Windows™ 11

* Support for the maximum number of GPUs depends on GPU model.

  Chassis images are generic. Check the specs
  tab for information specific to this model.

Specification

Chipset:Intel W790
Socket:Single (4677)
CPU Cooling:Liquid-Cooled (closed loop)
Processor:Intel Xeon W
Core Frequency (GHz):2.8 Base clock / 4.8 Boost clock
Cores/Threads:26/52
Multi-Threading:Yes
Max Configurable Memory:1TB DDR5-4800MHz
DIMM Slots:8
PCIe Slots:

x16, NA. x16(x8), x16, x16(x8), x16 (x4), x16(x8)

Supported GPU Configurations:

Up to 2 GPUs at x16

2.5" Drive(s):4 (Up to 8TB each)
3.5" Drive(s):2 (Up to 18TB each)
Shipping Dimensions:

21" (53.34cm) W
15" (38.10cm) H
24" (60.96cm) D

Shipping Weight:35 lbs.
Anti-Theft Feature:Kensington® Security Slot
M.2 Drive(s):4 (Up to 4TB each)
U.2 Support:Yes
RAID Support: 0, 1
OCuLink Support:No
Max 2.5"/3.5" Configurations: 2 x 3.5" | or | 1 x 3.5" + 2 x 2.5" | or | 4 x 2.5"
Onboard Wi-Fi:802.11ax (Wi-Fi 6E)
Onboard Bluetooth:V5.3
Power Supply:1,300-watt (80 PLUS Gold)
GPU Power Budget (W):1000

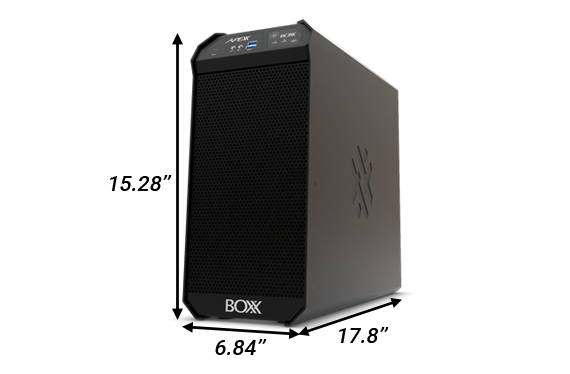

Product Dimensions:

  6.84" (17.37cm) W
15.28" (38.81cm) H
17.80" (45.21cm) D

Front I/O:

2 x USB 3.2 Gen 1 (Type-A)
1 x USB 3.2 Gen 2x2 (Type-C)
Audio Out/Mic In

Rear I/O:

2 x 10GbE LAN (RJ-45)
1 x 2.5GbE LAN (RJ-45)
4 x USB 3.2 Gen 1 (Type-A)
2 x USB 3.2 Gen 2 (Type-A)
2 x USB 4.0 / Thunderbolt 4.0 (Type-C)
1 x Optical S/PDIF out
7.1-Channel Audio
2 Ports

Optical Drive Option:No
Rackmount Option:No
Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.

Support

Most BOXX workstations include a standard three-year limited warranty and legendary BOXX Technical Support. Providing unparalleled hardware and software expertise, our support team is located at company headquarters in Austin, Texas and equipped with the tools and resources necessary to support you and your workflow.

Media Reviews

Customer Reviews

  BOXX has had my back for the last eight years, so the trust is there. That’s why it was easy for me to stand up against IT consultants and managers and say with confidence “We need to look at BOXX,” because there is that experience and BOXX has never let me down. The quality is second to none. I also know BOXX has awesome technical support, but happily, I’ve never had to use them.
Duane Addy

27-year architect w/over $750 million in projects

  We had no frame rate issues, everyone enjoyed it and that is sustained by the power of BOXX workstations. BOXX allows creators to have the freedom to be creative and to let that creativity soar.
Victoria Bousis

Emmy nominee and award-winning XR Director/Writer/Producer, “Stay Alive, My Son”

  With our new BOXX computer, our frame simulation timeline turned from three months into two weeks! Without the BOXX computer, it’s pretty accurate to say that the car we just unveiled—we probably wouldn’t have been able to unveil half of it.
Siddarth Babu

Solar Team Captain, University of Texas Longhorn Racing 2024

  It’s industrial, like a real piece of machinery— elegant, heavy-duty machinery. The tech support hotline feels more personal and is very responsive. With BOXX, it feels real. I know they’re in Texas and the machine feels like it is made by people who do what I do.
Daniel Simon

Concept Designer/Producer/Author, Tron: Legacy, Captain America: The First Avenger, Prometheus

  BOXX tech support was awesome—great! I've dealt with a lot of other companies, billion dollar companies, and I'm not sure what your market value is at this point, but I believe your(BOXX) tech support is some of the best, if not the best that I've had.
Ted Brooks

CTO, S.I.C. Film School

  Initial boot time has been cut by two thirds. Time to launch 3ds Max has been cut in half or less. Other programs open in an instant. My navigation within large high polygon count scenes is virtually seamless. Before, saving large files could take up to 90 seconds, maybe even two minutes. With the new BOXX, that time is cut down to five seconds.
Michael J. Brown

Founder, Renderhaus- Premium Architectural Visualizations
