HELIXX 4U8G | EPYC BMC

The HELIXX 4U8G | EPYC BMC is the ultimate high-density 4U server for machine learning and rendering workloads. Powered by Dual AMD EPYC 9005 Series processors and supporting up to eight graphics cards and 3 TB of memory, this platform is purpose-built for deploying AI Training, Inference, and Visual Computing. Its design delivers the necessary GPU, CPU, and memory resources for seamless real-time rendering and AI model deployment.

All HELIXX Servers include a Standard Three-Year limited Warranty, with Premium Support & Services included free in year 1: 24/7 phone support and next business day onsite repair service. Customers can extend Premium Support into years 2 and/or 3, but only at the time of system purchase.

HELIXX 4U8G | EPYC BMC

Specification

Download Spec Sheet
See Full Specs
Chipset:SoC
Socket:Dual (SP5)
CPU Cooling:Air-Cooled
Processor:Dual AMD EPYC 9005
Core Frequency (GHz):2.25 Base clock / 3.7 Boost clock
Cores/Threads:384/768
Multi-Threading:Yes
Max Configurable Memory:3TB DDR5-6400MHz
DIMM Slots:24
PCIe Slots:

8 PCIe 5.0 x16 for NVIDIA® RTX PRO™ Blackwell Server Edition
5 PCIe 5.0 x16 for Network Add in Cards

Supported GPU Configurations:

Up to 8 GPUs PCIe 5.0 x16

2.5" Drive(s):8 (Up to 30TB each)
3.5" Drive(s):N/A
Shipping Weight:60 lbs.
M.2 Drive(s):2 (Up to 4TB each)
Power Supply:3200-Watt 3+1 (80 Plus Titanium) (208-240V)
GPU Power Budget (W):4800
Product Dimensions:

17.2" (43.85cm) W
6.88" (17.50cm) H
31.4" (80.0cm) D

Front I/O:

(8) Hot-Swap 2.5 NVMe U.2 Drive Bays

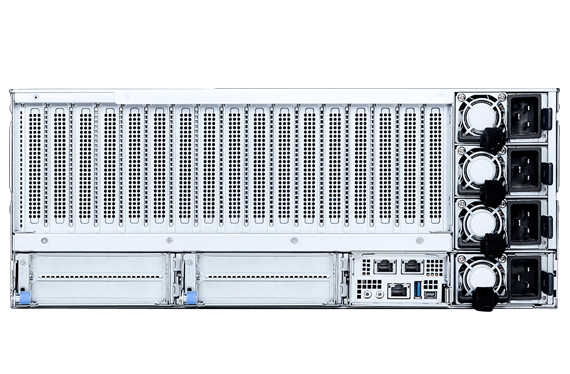

Rear I/O:

(1) 1000Base-T Dedicated Server Management port
(1) 10GBase-T Ethernet ports
(1) USB 3.0/2.0 Type-A port
(1) Mini Display port
(1) Power LED button
(1) UID LED button

Rackmount Option:Yes
Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.

This product is available now. Secure your order by connecting with a Performance Specialist.
