HELIXX 4U8G | EPYC CX8

The HELIXX 4U8G | EPYC CX8 is a high-density 4U server for hyperscale AI workloads and cloud data centers. Powered by Dual AMD EPYC 9005 Series processors and supporting up to eight graphics cards and 3 TB of memory, this platform is purpose-built for integrated PCIe Gen6 connectivity for AI factories and trillion-parameter GPU computing. The CX8 contains the NVIDIA MGX PCIe Switch Board with ConnectX-8. This board replaces the traditional PCIe switch board used in 8x GPU servers with bundled NVIDIA networking enabling a built-in 48-lane PCIe switch capable of 800Gbps networking.

HELIXX 4U8G | EPYC CX8

Specification

Download Spec Sheet
See Full Specs
Chipset:SoC
Socket:Dual (SP5)
CPU Cooling:Air-Cooled
Processor:Dual AMD EPYC 9005
Core Frequency (GHz):2.25 Base clock / 3.7 Boost clock
Cores/Threads:384/768
Multi-Threading:Yes
Max Configurable Memory:3TB DDR5-6400MHz
DIMM Slots:24
PCIe Slots:

8 PCIe 5.0 x16 for NVIDIA® RTX PRO™ Blackwell Server Edition
1 PCIe 5.0 x16 for Network Add in Cards

Supported GPU Configurations:

Up to 8 GPUs PCIe 5.0 x16

2.5" Drive(s):8 (Up to 30TB each)
3.5" Drive(s):N/A
Shipping Weight:60 lbs.
M.2 Drive(s):2 (Up to 4TB each)
Power Supply:3200-Watt 3+1 (80 Plus Titanium) (208-240V)
GPU Power Budget (W):4800

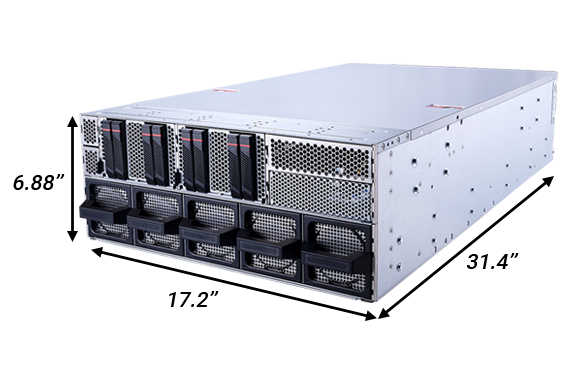

Product Dimensions:

17.2" (43.85cm) W
6.88" (17.50cm) H
31.4" (80.0cm) D

Front I/O:

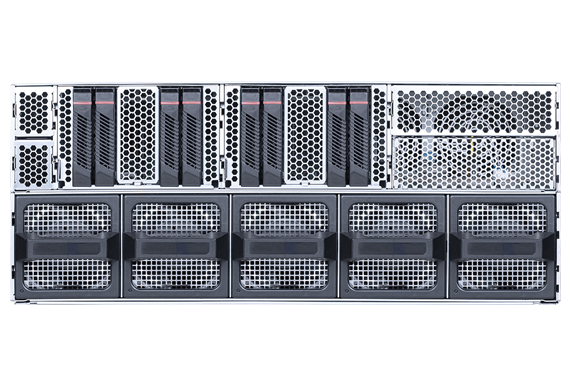

(8) Hot-Swap 2.5 NVMe U.2 Drive Bays

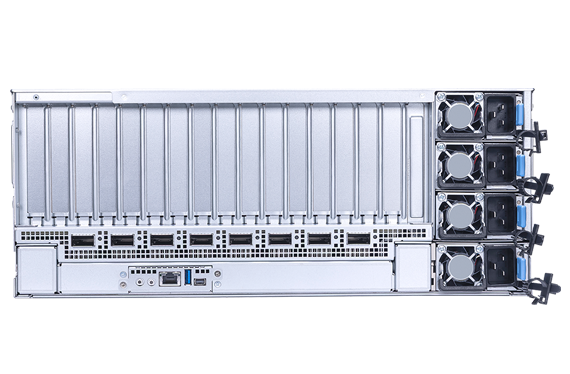

Rear I/O:

(1) 1000Base-T Dedicated Server Management port
(8) 400G QSFP112 ports
(1) USB 3.0/2.0 Type-A port
(1) Mini Display port
(1) Power LED button
(1) UID LED button

Rackmount Option:Yes
Notes:

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.

GPU power budgets are conservative estimates.

Shipping weights vary by configuration.
